Client Linux Mac Android IOS

The LiteManager client for Linux, Mac, Android and IOS platforms basically repeats the functionality of the basic Windows version, but has differences in interface and design due to platform features. We tried to combine all the components of the program into one application such as LM Viewer, LM Server and NOIP.
The main window has the LM Viewer functionality, the settings also relate to the client module, LM Server and all its settings are placed separately on the LM Server tab and all its settings differ from the main settings on the Settings tab, for example, the Connection settings by ID on the Settings tab relate to the main application, and the settings on the LM Server tab similarly, the Connection by ID already refers only to the part of the LM Server, which can cause some confusion, but at the same time allows you to clearly separate two different modules of the program that are now combined into one application. NOIP is also a separate window in this application, on the Help tab, there is a NOIP button that allows you to access the functionality of the NOIP server, its settings are also stored in separate data and are not associated with the main application.

Most windows repeat the familiar interface of the program for the Windows platform, so their description for experienced users is not required to be familiar with the basic Windows version, while there are certain differences and additional settings that have been added for this mobile version of the program, they will be described separately below.

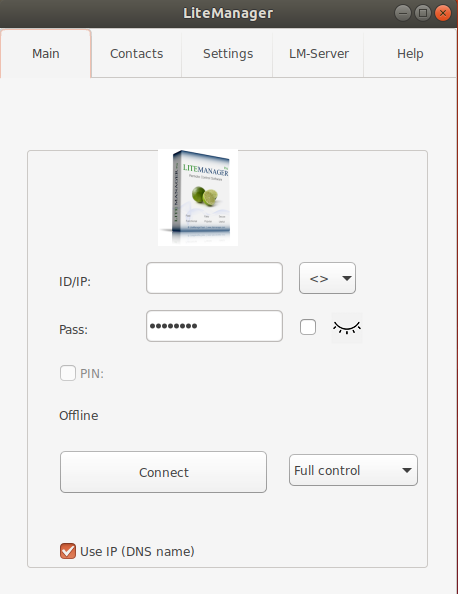

Main window

Main page

To quickly connect to a remote computer, you need to specify its IP address or ID.
ID/IP - a field for specifying the IP address or ID of the remote computer.
Pass - the password from the LM Server to connect to a remote PC. The password can be seen if you check the box next to it, this is convenient for the mobile version.
<> - connection history, you can select the previously specified address or ID from the list.
PIN - PIN code in case of connection by ID.
Connect - connect to a remote computer. Establishes a network connection with a remote PC, the connection status will be indicated in the line below.
In the drop-down list, you can select the connection mode screen control, viewing, file transfer, etc.

Use IP (DNS name) - the option means that the IP address or DNS name of the remote computer is entered in the field, not the ID. This is necessary so that there is no confusion between the connection ID and the connection directly by the PC name, since sometimes they can coincide. The program tries to automatically recognize what is entered in the connection field.

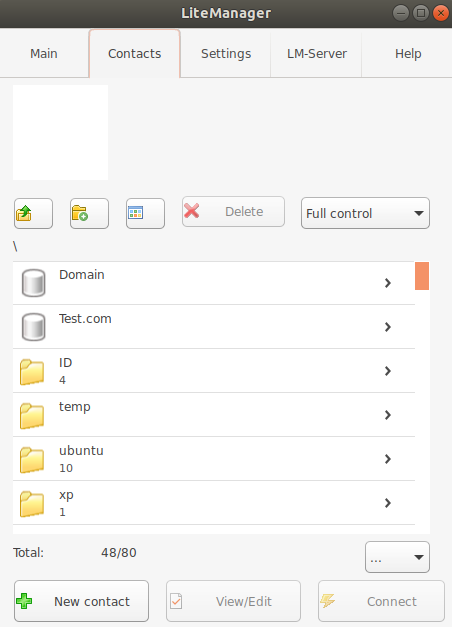

Contacts

In the contacts window, you can see and create an address book, contacts are added to the New contact button, you can View/edit the contact or delete it. For convenience, existing contacts from the basic version for Windows can be imported or synchronized in the standard way for LiteManager.

A choice of operating mode is available in the drop-down list, for example, on-screen controls, files, etc. The Authorization and authorization cancellation functions are placed in a separate drop-down list (...).
Highlight the connection in the list and click Connect.

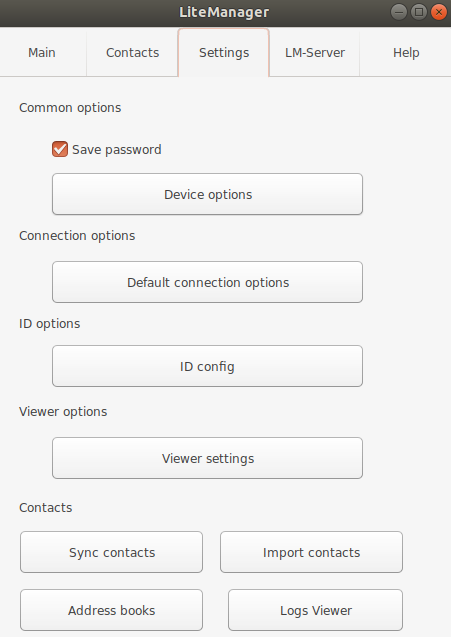

Settings

Common options
This tab contains the main options and settings of the LiteManager application, they can be attributed to the LM Viewer module, since the settings for the built-in LM Server and NOIP are located separately, respectively, on the LM Server and NOIP tab.

Save password - save the password on the main application tab.

Device options - settings related to the features of the platform or this application, these are unique settings that are not present in the basic version of the program for Windows platform.

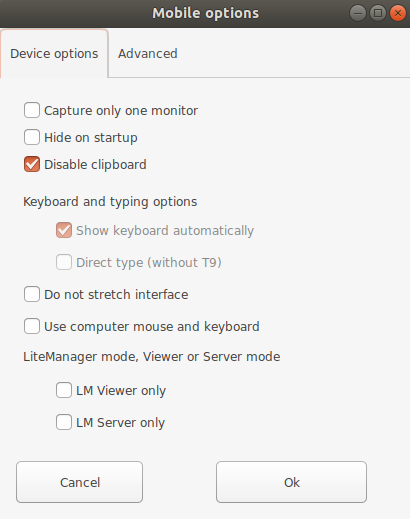

Device options

Capture only one monitor - in screen control mode, if there are two monitors on a remote computer, then the programs display the first of them, i.e. only one, if necessary, you can select the second monitor or both to work.
Hide on startup - when the application is launched, it will be hidden, or rather minimized, minimized.
Disable clipboard - disable working with the clipboard.

Keyboard and typing
Show keyboard automatically - for mobile devices, displays the keyboard for text input automatically.
Direct type without T9 - for mobile devices, when typing in a field, characters will be sent automatically while T9 will not work.

Do not stretch interface - the elements located on the form will not scale across the screen, or rather according to the size of the window shape. Sometimes there are problems with the correct position of some buttons on the form, enabling this option should solve the problem, although the form elements will not scale their position.
Use computer mouse and keyboard - when connecting to a mobile device such as a tablet computer mouse and keyboard, enable this option for the correct operation of the application.

Mode of operation of LiteManager, Viewer or Server
LM Viewer only - the application will only work as a Viewer, the functionality and the LM Server tab will be hidden.
LM Server only - the application will only work as a Server, the Viewer functionality will be hidden.

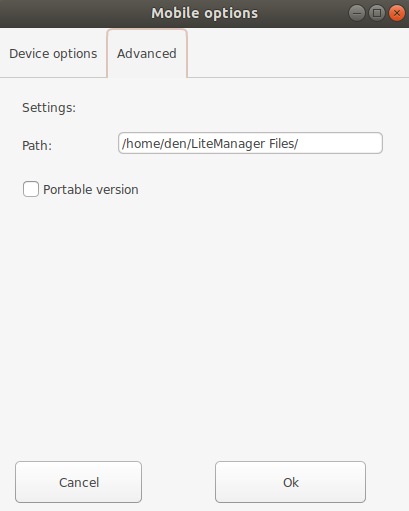

Advanced tab

Path - the path to the program settings directory is specified.
Portable version (Compact version) - portable version mode, when the program settings are stored next to the executable file, in one folder.

Connection options
Default connection options - default connection settings (contacts) that will be set when creating a new contact in the connection list.

ID options - connection settings by ID for the application related to the Viewer part, Connection settings by ID for the Server part are set separately and are not related to these settings.

Viewer settings - the basic settings of the viewer, such as the interface language, thumbnail updates, etc. Basically similar to the basic settings of the viewer in the Windows version.

Contacts
Sync contacts - synchronization of contacts, similar to the function of the basic version.
Import contacts - importing a contact file Connections_3.4.xml . Compatible with any version of the program.
Address books - address books, setting up address books, similar to the basic version.
Logs Viewer is a viewer log manager, in many ways similar to the basic version.

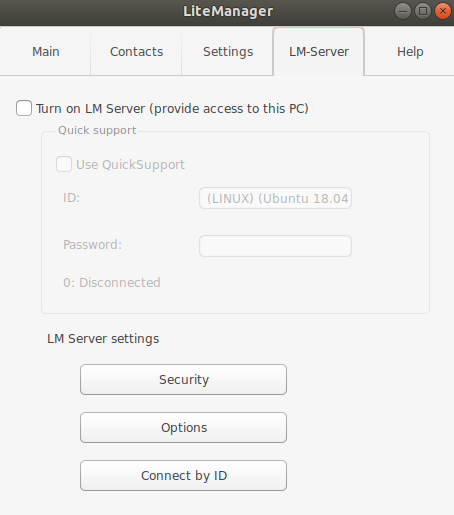

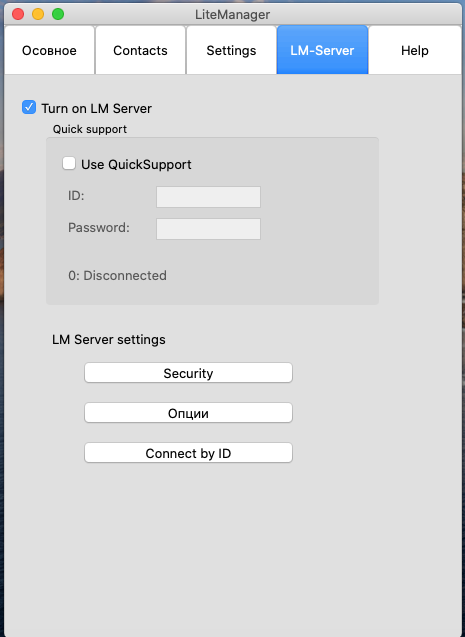

The LM Server tab.

The LM Server module is located on this tab, the functionality of the basic version of LM Server under Windows is similar, all settings for the LM Server are located on this tab. If necessary, this tab can be hidden in the main program settings, in the device settings.

Turn on LM Server (provide access to this PC) - enables the LM Server operation mode, i.e. we directly enable network reception of incoming connections to the default port of the program 5650.

Quick support - when this mode is enabled, an ID and password will be generated for the LM Server, and an ID connection will be established.

LM Server settings - LM Server settings are similar to the basic version for Windows.

Security - security settings.
Options - LM Server settings.
Connect by ID - connection by ID and its settings for the LM Server. Not related to the basic connection settings by ID for the application.

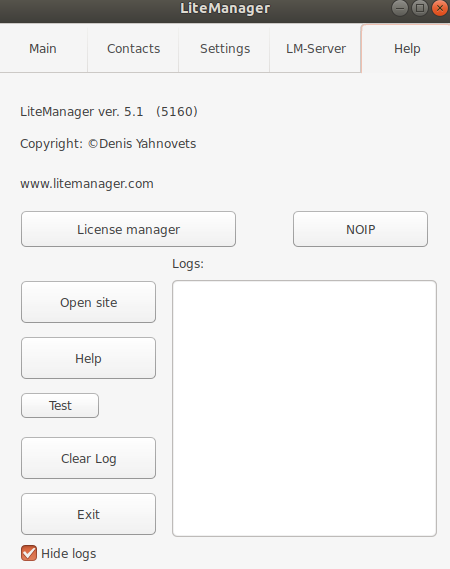

Help

This tab contains additional information about the program.The exact version of the program is indicated in parentheses, for example (5160).

A License manager is available to enter the license key, since by default only 30 contacts in the list are available.

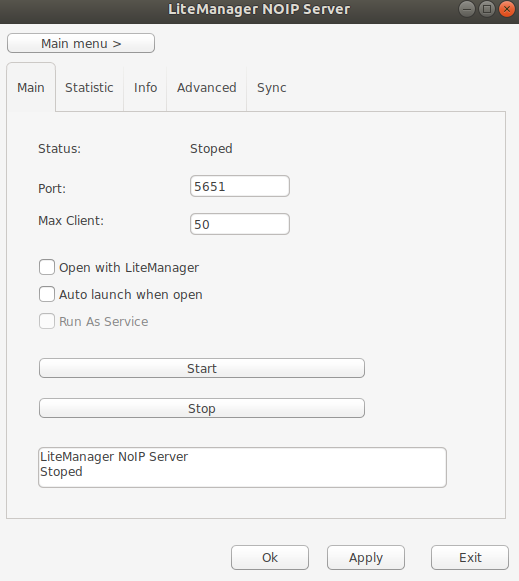

NOIP - opens the window of the built-in NOIP, similar to the basic one under Windows.
Open site - opens the website of the LiteManager program.
Help - opens the help window for the program, instructions for controlling the screen.
Test - test button, not used in the working version.
Clear logs - clears the text field with the log.
Exit - exit the application.
Hide logs - stops displaying the log entries in the text field.

The cross-platform version of LiteManager is being actively refined, we are trying to unify the interface and bring the functionality as close as possible to the basic version of the program for Windows, more functions and features will be available over time.
Users familiar with the basic version will not have much difficulty working with the version for other platforms.
For undisclosed questions, you can contact us for support or try to find an answer on our website in the help and instructions for the basic version of the program.
